Pitch Black Thermal

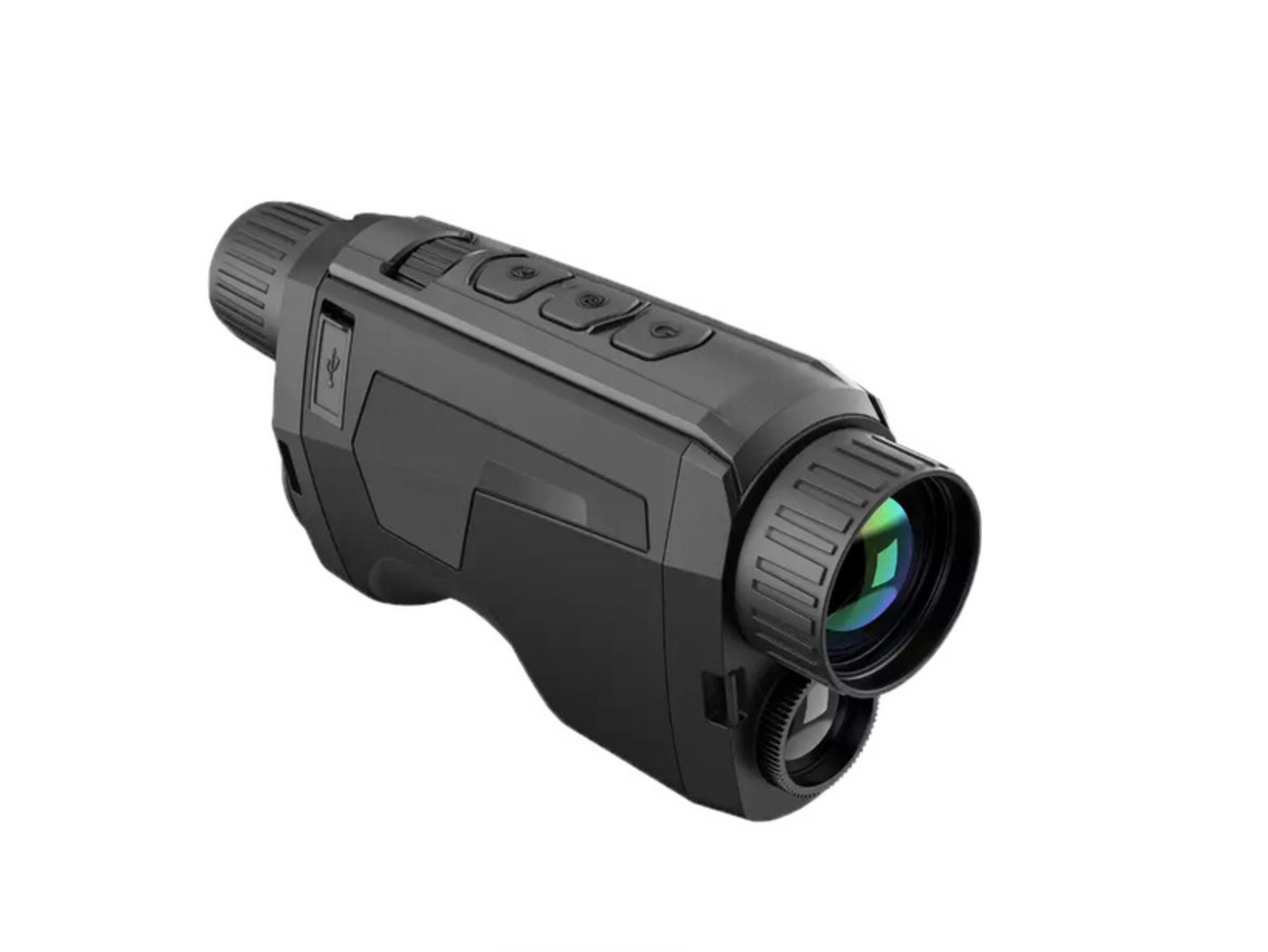

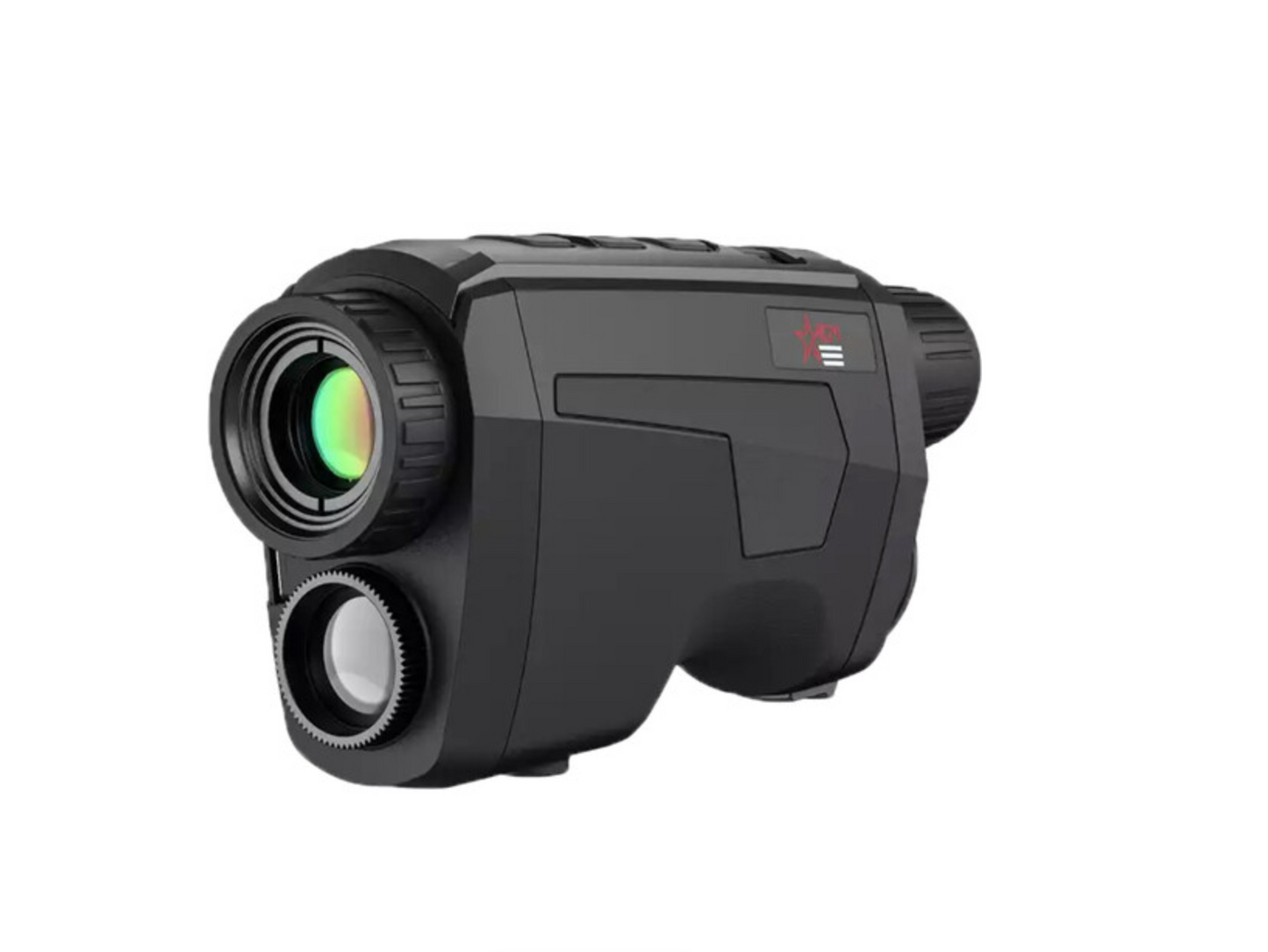

AGM Sidewinder TM35-640

AGM Sidewinder TM35-640

Regular price $2,995.00 USD
Regular price $3,294.00 USD Sale price $2,995.00 USD
Sale Sold out

The AGM Fuzion TM35-640 x 512 Thermal Imaging & CMOS Monocular offers three ways to see what's hidden from sight: an optical image, a thermal image, and a fusion of the two that that can be adapted to environmental conditions. Equipped with a 12μm high-sensitivity thermal detector, a 1024 x 768 OLED display, and an eyepiece with a large field of view, the monocular can quickly detect objects obscured by smoke, fog, rain, snow, etc.

An f/1.0 22mm objective lens gathers ample thermal radiation for crisp, clear imagery, shown on an OLED display. Digital magnification levels are 1x, 2x, 4x, and 8x. Power is supplied by one rechargeable 18650 battery with a maximum runtime of five hours—longer when using a separately sold external power supply. The Fuzion's user-friendly interface and ergonomic controls make operation simple, so you can concentrate on the task at hand. The unit carries an IP67 water- and dust-resistance rating, so inclement weather isn't a concern.

Imaging Performance
  • Optical, thermal, and optical-thermal fusion modes
  • Fusion image can be manipulated for optimal view
  • 12-micron pixel pitch microbolometer
  • Resolution: 640 x 512 pixels
  • Refresh rate: 50 Hz
Optical Performance
  • Lens system: 22mm, f/1.0
  • Optical magnification: 2x
  • Digital zoom: 1x, 2x, 4x, 8x
  • Field of view: 12.5 x 10°
  • Ultra-low light optical channel
Video Features
  • 1024 x 768 color display
  • Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion color palettes
Construction Details
  • IP67-rated waterproof and dust-tight
  • Can send video to optional video recorder
  • Wi-Fi hotspot
  • Standby mode
  • Runs on one rechargeable 18650 battery, five hours maximum runtime
